The following list of partners and OEM's supply SilcoTek™ coated products
 |
Tubing
Adsorption problems in sample pathways often can be traced to the tubing and fittings transferring the sample to the analytical instrument. Always use SilcoNert™2000 treated tubing and fittings for applications involving active compounds at ppm and ppb levels. SilcoTek™ partners offer the finest in treated tubing.
|
| |
www.obrien-analytical.com
Contact your O'Brien representative and ask for EPS tubing.
Click here to learn more.
|
| |
www.thermon.com
Ask for SilcoNert™ 1000 (Silcosteel®) or SilcoNert™2000(Siltek®/Sulfinert®) coated tubing.
|
| |
www.restek.com
Ask for SilcoNert™2000 (Siltek®/Sulfinert®) and Silcolloy™1000 (SilcoSteel®-CR) coated tubing. |
[ top ]
 |
Fittings and Valves
Tube fittings can be a source of sulfur and mercury adsorption and sample loss. Exposed fitting and valve surfaces will react with active compounds (like sulfur, H2S, NOx and mercury) at ppb and ppm levels. Inaccurate readings, delayed response and false positive readings due to memory effects can be traced directly to active fitting and valve surfaces. SilcoTek™ partners with the following suppliers of high quality fittings and valves:
|
| |
www.swagelok.com
Go to Swagelok's website to find a distributor near you. For SilcoNert™2000 (Siltek®/Sulfinert®) treated fittings, ask your local Swagelok distributor to add the suffix –JA to your part number. For Valves add the suffix -12457.
www.mrcpvf.com
MRC® offers SilcoNert™ 2000 coated fittings, valves and other products from stock! Contact your local MRC representative to learn more.
|
| |
www.parker.com
Ask your Parker distributor for SilcoNert™2000 (Siltek®/Sulfinert®) treated fittings and valves.
www.valtorc.com
Valtorc® International is a major supplier in the industrial control and actuated valves market worldwide supplying ARRA CERTIFIED Ball Valves, Butterfly Valves, V-Port Ball Valvesand many more American made products since 1980. Contact your Valtorc representative to purchase SilcoNert™, Silcolloy™, or Dursan™ coated valves.
|
| |
www.ovisinc.com
Offering (Siltek®/Sulfinert®) treated Parker fittings and valves. Ask your Ohio Valley representative to add the suffix –SN2 to your part number.
|
| |
www.restek.com
Offering a complete line of laboratory or life science products. Ask your Restek representative for SilcoNert™2000 (Siltek®/Sulfinert®) or Silcolloy™1000 (Silcosteel®-CR) treated fittings.
|
| |
Alta-Robbins
The difference is in the seat!
www.altarobbins.com
Offering SilcoNert™2000 (Siltek®/Sulfinert®) and Silcolloy™1000(Silcosteel®-CR) treated valves. Ask you Alta-Robbins representative for suffix –SN2 for SilcoNert™2000 and -SL1 for Silcolloy™1000
|
| |
www.hylokusa.com
Offering SilcoNert™2000 treated fittings, valves, and tubing. Ask your Hy-Lok USA representative for SilcoNert™2000 coating where inert sampling is critical.
|
[ top ]
 |
Regulators and flow control
Sample flow paths through valves and regulators can be tortuous, prolonging contact between the sample stream and the regulator/flow control components. SilcoTek™ treatments have been applied to many regulator and flow controller geometries; eliminating sulfur and mercury adsorption in bodies, stems, diaphragms, and other wetted components.
|
| |
www.bronkhorst.com
Bronkhorst High-Tech model F-201CZ Mass Flow Controllers are suited for precise control of virtually all conventional process gases. The SilcoNert™ 2000 coating ensures analytical system accuracy, sensitivity, inertness and durability in demanding applications. Ask your Bronkhorst representative for SilcoNert™ 2000 coated mass flow controllers. To learn more about SilcoNert™ 2000 coated mass flow controllers, click here.
www.parker.com
For SilcoNert™ 1000 (Silcosteel®) coated Porter mass flow controllers inquire at industrial@parker.com. Ask your Parker representative for SilcoNert™ 1000 (Silcosteel®) coated 3200 flow controllers. The body component material designator J. Part number 3201FRHJVYAA for 1/4in compression ends, part number 3261FRHJVXYA for ISA SP-76 manifold mound, Parker IntraFlow compatible flow controller.
|
| |
www.spectragases.com
Ask your Spectra Gases representative for SilcoNert™2000(Siltek®/Sulfinert®) coated regulators.
|
| |
www.concoa.com
Ask your Concoa representative for SilcoNert™2000 (Siltek®/Sulfinert®) treated regulators.
|
| |
www.tescom.com
Ask your Emerson/Tescom representative for SilcoNert™2000 (Siltek®/Sulfinert®) treated regulators.
|
| |
www.swagelok.com
Go to Swagelok's website to find a distributor near you. For SilcoNert™2000 (Siltek®/Sulfinert®) treated regulators, ask your local Swagelok distributor to add the suffix –12457 to your part number.
|
[ top ]
 |
Filters
Frits and other filtering devices adsorb active components in sample streams. Their large surface area can increase sample/system contact by orders of magnitude. SilcoNert™2000 treated frits and filters create an inert flow path. Our chemical vapor deposition technology ensures the treatment penetrates even the smallest pores in sintered metal frits.
|
| |
www.restek.com
Offering a complete line of laboratory or life science products. Ask your Restek representative for SilcoNert™2000 (Siltek®/Sulfinert®) or Silcolloy™1000 (Silcosteel®-CR) treated fritted filters.
|
| |
www.thermo.com
Ask your Thermo Fisher representative for SilcoNert™2000 (Siltek®/Sulfinert®) coated frits and filters.
|
| |
Perma Pure LLC
www.permapure.com
Ask your Perma Pure representative for SilcoNert™2000 (Siltek®/Sulfinert®) coated filters.
|
| |
www.mottcorp.com
Ask your Mott representative for SilcoNert™2000 (Siltek®/Sulfinert®) or Silcolloy™ (Silcosteel®-CR) coated porous metal filters.
|
| |
www.geniefilters.com
Ask for SilcoNert™2000 designator –SN
Ask for Silcolloy™1000 designator –CR
|
[ top ]
 |
Sample Vessels
When samples are taken from a process stream and are transported to the laboratory for evaluation, it is critical to use SilcoNert™2000 treated sampling containers. SilcoNert™2000 prevents active components like sulfur, H2S, and methylmercaptan from adsorbing to vessel, valve or outage tube surfaces.
|
| |
www.swagelok.com
Go to Swagelok's website to find a distributor near you. For SilcoNert™2000 (Siltek®/Sulfinert®) treated sample cylinders, dip tubes and valves, ask your local Swagelok distributor to add the suffix –12457 to your part number.
|
| |
www.parker.com
Ask your Parker distributor for SilcoNert™2000 (Siltek®/Sulfinert®) treated sample cylinders, dip tubes, and valves.
|
| |
www.welkereng.com
Sampling natural gas streams or other pressure sensitive chemicals? Welker Engineering offers SilcoNert™2000 (Siltek®/Sulfinert®) treated sample systems to insure complete inertness. Ask your Welker representative for SilcoNert™2000 (Siltek®/Sulfinert®) (treated constant pressure sample cylinders.
|
| |
www.restek.com
Offering a complete line of laboratory or life science products. Ask your Restek representative for SilcoNert™2000 (Siltek®/Sulfinert®) or Silcolloy™1000 (Silcosteel®-CR) treated sample cylinders. Restek now offers TPED compliant sample cylinders.
|
[ top ]
 |
Sample Probes
Sampling probes are used in a variety of applications, including sampling natural gas, stack, flare, or other process streams. Probes are often exposed to severe conditions involving corrosive gasses, high temperatures, and active compounds such as hydrogen sulfide and sulfur. An untreated probe contributes to the active surface area in the system and may experience severe corrosion which further contributes to system activity. SilcoNert™2000 treated or Silcolloy™1000 treated probes can increase probe life while eliminating potential sources of activity.
|
| |
www.conaxtechnologies.com

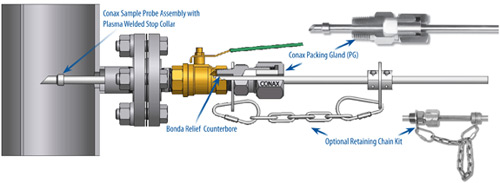

Conax Technologies' Sample Probe Assembly (SPA) is used to hot-tap a sample probe into a closed-loop pressurized process pipeline. A Conax Packing Gland (PG) seals the Sample Probe exiting the process isolation valve. Specify SilcoNert 2000 (Siltek/Sulfinert) or Silcolloy 1000 (Silcosteel-CR) coated Sample Probes using Conax's Quote Request Form or email SPA@conaxtechnologies.com
|
| |
M&C Products
www.mc-products.com
Ask your M&C representative for SilcoNert™2000(Siltek®/Sulfinert®) coated probes. For severe service environments ask for Silcolloy™1000(Silcosteel®-CR) coated probes.
|
| |
www.welkereng.com
Sampling natural gas streams or other pressure sensitive chemicals? Welker Engineering offers SilcoNert™2000 (Sulfinert®) and Silcolloy™1000 (Silcosteel®-CR) treated sample systems to insure complete inertness. Ask your Welker representative for SilcoNert™2000 (Sulfinert®) and Silcolloy 1000 (Silcosteel®-CR) treated probes.
|
| |
www.thermo.com
Ask your Thermo Fisher representative for SilcoNert™2000 (Sulfinert®) and Silcolloy™1000 (Silcosteel®-CR) coated probes.
|
| |
www.geniefilters.com
Ask for SilcoNert™2000 designator –SN
Ask for Silcolloy™1000 designator –CR
|
[ top ]
 |
Heated Sample Lines
A heated "trace line" consists of standard grade or electropolished tubing that has been insulated and bundled with heating devices to ensure the sample is transferred at a consistent temperature. Heated trace lines are used in stacks, flares and other point source emission applications. Active compounds in samples can quickly be adsorbed into the hot tubing resulting in false or poor analytical results.
|
| |
www.obrien-analytical.com
Contact your O'Brien representative and ask for EPS tubing.
|
| |
www.thermon.com
Ask for SilcoNert™ 1000 (Silcosteel®) or SilcoNert™2000 (Sulfinert®) coated tubing.
|
| |
www.restek.com
Ask for SilcoNert™2000 (Siltek®/Sulfinert®) and Silcolloy™1000 (SilcoSteel®-CR) coated tubing.
|
[ top ]
