SilcoNert® Inert Coating for Gas Flow Path Components

The Ultimate Inert Coating for Improving Gas Analysis

What is SilcoNert®?

SilcoNert coatings, also known by the tradenames Sulfinert®, Siltek®, and Silcosteel®, are the industry standard for creating a chemically inert flow path in laboratory and process instrumentation. These coatings are made of amorphous silicon (a-Si) and often functionalized to achieve the lowest possible detection limits in separation science. This is especially critical for quantifying low levels of chemical compounds found in vehicle emissions, refinery gases, air samples, pesticides, VOCs, and more that are prone to reacting with and adsorbing to untreated metal surfaces.


SilcoNert 2000 is the flagship CVD coating trusted by chromatographers and process engineers across the globe to get the most accurate results instantly, eliminating time-consuming workarounds like priming or passivation. SilcoNert coatings allow users and manufacturers alike to enjoy the mechanical benefits of stainless steel while eliminating unwanted surface interactions that cause false readings, frequent maintenance, and process downtime.







How is SilcoNert Applied to Your Parts?

Like all SilcoTek® coatings, SilcoNert surfaces are applied using SilcoTek’s proprietary chemical vapor deposition (CVD) technology. Unlike typical liquid spray or dip coating methods, CVD is a completely non-line-of-sight process that uses gases at high temperatures to produce ultra-thin coatings which bond molecularly to the part substrate, creating superior adhesion compared to any other coating. This also means that even sub-micron sized openings, sharp edges, flexible components like bellows, and high aspect ratio flow paths are completely coated without requiring design changes. For example, SilcoTek routinely coats gas chromatography (GC) weldments, columns, sub-micron filters, mass spectrometry (MS) components, and many other intricate parts. The thin, amorphous structure of SilcoTek coatings allows SilcoNert-coated parts like tubing to be flexed without damage and ready to install right out of the box.

Want to know if SilcoNert is right for your application? Contact our Technical Service Team.

Get a Quote

Applications & Benefits

gas chromatography

LABORATORY

Coat critical instrument flow path components to improve test quality, eliminate sample contamination, and prevent adsorption.



Commonly coated parts:

  • Inlet liners
  • Injection ports
  • Weldments
  • FID jets
  • Columns and transfer tubing
chemistry

cHEMICAL PROCESS

Coat process sample transfer components to improve system reliability and assure consistent product quality.

Commonly coated parts:

  • Valves
  • Fittings
  • In-line filters
  • Reactors and chambers
  • Straight and coiled tubes
refinery

REFINERY & PETROCHEMICAL

Improve accuracy of feedstock testing and process monitoring while ensuring regulatory compliance.

Commonly coated parts:

  • Sample probes
  • Pressure regulators
  • Sampling cylinders and vessels
  • Exhaust gas components
  • Heat trace tube bundles

Don’t see your application?

We assign an expert team to every customer project and sometimes customize standard coatings to meet unique needs.

Contact our coating experts to discuss your requirements and try our coatings at little or no cost to you.

SilcoNert in Scientific Publications


powered by bioz Powered by Bioz See more details on Bioz



SilcoNert® Coated Product Examples

silconert-filter-housing_3

SilcoNert-coated Filter

CVD coatings effectively protect sintered filter media without clogging pores.

Assorted-Sulfinert-Sampling-Parts-1

SilcoNert-coated Sampling Parts

Store and flow samples without adsorption or catalysis.

coated tubingpng-3

SilcoNert Internally Coated Coiled Tubing

Coated tubing ensures sample integrity for fast, accurate results.

Related Resources

Data Sheets and Brochures

SilcoNert® 2000 Data Sheet

Case Studies

Enhance Process Sampling Accuracy and Safety with SilcoTek Coatings and SENSOR Sampling Systems

Technical Publications

Inertness comparison of electropolished and non-electropolished 316 surfaces with coated and non-coated variants

Videos and Webinars

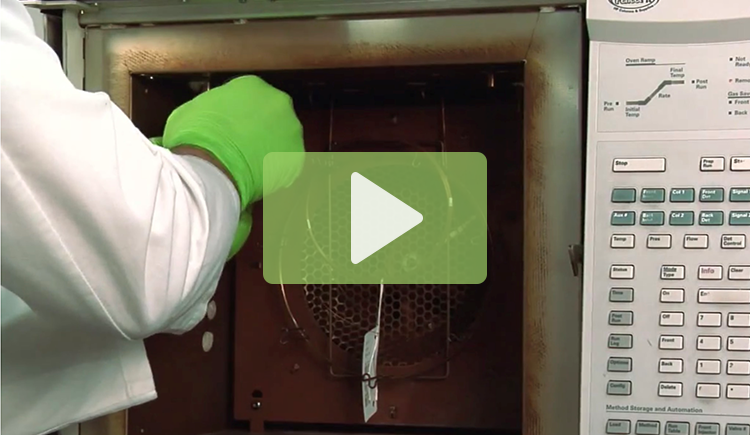

How to get the Most from an Inert Coating

Data Sheets and Brochures

Inert CVD Coating Comparison: Does the Supplier Matter?
