HPLC Coating Applications




                   Application

Column & Fritarrow-small.png


 Sampling & Transferarrow-small.png


Stainless Steel Componentsarrow-small.png

                 Benefit

Improved Chromatography

Reduce Carryover & Contamination

Prevent Sample Loss & Corrosion

Improve Inertness & Purity

Improve Hydrophobicity & Corrosion



HPLC Medical Background.jpgColumn and PEEK Frit

  • Tetracycline has a number of potential chelating groups
  • Dursan® coated column shows improvement in peak shape.

Stainless steel columns and flow paths can interact with the analyte, causing adsorption and poor chromatography.  CVD coatings, like Dursan, create an iron-free bio-inert flow path that minimizes unwanted interaction with proteins, peptides, chelating molecules, and other troublesome analytes.  Benefits of an inert metal-free HPLC column coating include:

  • Metal-free HPLC flow path for improved durability and corrosion resistance, even under extreme pH conditions.
  • Improved peak shape and peak resolution.
  • Improved bio-inertness of frits and other difficult components that cannot be treated by other methods.
  • Enhanced chemical compatibility, even with media like tetrahydrofuran (THF) that challenge PEEK.

Watch Our Metal-Free  HPLC Webinar

The comparative chromatograph below tells the story.  The resolution quality of tetracycline on a stainless steel column showed poor peak shape and response.  The Dursan coated column significantly improved the peak shape and significantly improved response.


 Tetracycline HPLC peak shape comparison.jpg

Get Our New HPLC Application Guide


Coated frit 3.pngImproved durability over PEEK and Fluoropolymers

Solvents and high temperatures can damage PEEK tubing and frits which can lead to inconsistent pressures, flow problems and potential delamination and failure.  Until now finding an inert frit and inert tubing replacement could be challenging.  A metal-free HPLC coating bonded to stainless steel combines the strength and durability of stainless steel with the inertness of a high purity silicon oxide coating.

PEEK issues include:

  • Temperature limitations (Tg = 148°C)
  • Halogenated solvent damage
  • THF, Acetone, and other organic solvents cause swelling
PEEK tube-809683-edited.png PEEK tube swelled 1-922329-edited.png

The Ideal PEEK Frit Replacement

PEEK frit swelling can cause pressure problems and make sub 2 micron filtering impossible.  Dursan coated stainless steel frits offer the inertness and performance of PEEK without swelling, assuring consistent column performance and sub 2 micron filtering.

Tubing performance can be improved with Dursan coated stainless steel tubing.  Dursan tubing won't swell or fail under high temperatures.  Helping to reduce system failures and improve pressure consistency.


Needle_Image.jpgNeedles

Injector needles can be a major source of non specific protein binding and cross contamination of samples when doing protein separations.  Trace proteins and other sticky compounds can remain after washing with bleach or other cleaning agents.  Non-stick Dursan® coated needles significantly reduce carryover, preventing false positive test errors.  QCM-D analysis of coated and uncoated stainless steel surfaces show significant increase in protein mass on the stainless steel surface.  The Dursan coated surface does not retain proteins, showing no increase in mass after washing with a non-ionic surfactant.




Read The Protein Adhesion  Study

Back to top




AVPRotaryValve.pngSampling And Transfer

Corrosion is a major source of contamination in sampling and transfer systems.  Trace moisture or aggressive cleaning agents can cause surface pitting which can retain test sample compounds.  Prevent surface contamination and corrosion by coating critical flow path surfaces with Dursan.  Dursan improves corrosion resistance to broad spectrum microbials like bleach by orders of magnitude compared with uncoated stainless steel.  ASTM G31 hydrochloric acid immersion of test coupons (below) show the stainless steel surface corrodes at a 170x faster rate than the Dursan coated surface.  That means less chance of contamination and improved flow path life.

Dursan_bleach_comparison

ASTM G31 hydrochloric acid immersion of test coupons (below) show the stainless steel surface corrodes at a 170x faster rate than the Dursan coated surface.  That means less chance of contamination and improved flow path life.

  • ASTM G31 guidelines
  • 20% (6M) HCl room temperature immersion 24 hours
  • Over 170x improvement with coating

HCL corrosion 20 percent 24 hours-657048-edited-947111-edited.png

See for yourself!  Watch our corrosion video.



Improved Durability

Dursan also withstands medical-grade cleaning procedures.  Under sonication, fluoropolymer coatings (lower image) can crack and flake from the surface.  The Dursan coated surface (top image) remains intact, allowing coated surfaces to be sonicated repeatedly without damage.

Dursan carryover.png



Back to top


1998.jpgAmpules & Glass Surfaces

Reactive glass, and quartz surfaces can adsorb active compounds during sample transfer.  Bio-inert Dursan does not react with proteins or other sample compounds, preventing test errors, carryover, or contamination of test flow paths.  Glass surfaces exposed to "sticky" compounds like proteins or reactive analytes adsorb and retain the sample which can lead to test failures and calibration problems or false positive results (graph below).  Dursan coated surfaces virtually eliminate analyte-to-glass interactions, improving test reliability.

Dursan vs glass adsorption.jpg

Learn More About  Bio-Inert Coatings

Back to top

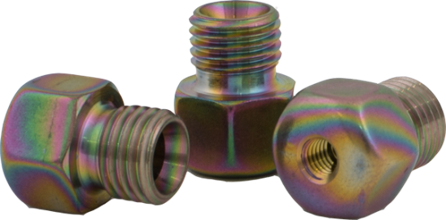

HPLC nuts 3.pngStainless Steel Components

Stainless steel components can retain moisture, causing sample adsorption and corrosion.  Hydrophobic SilcoTek® coatings repel moisture, preventing sample contamination and test failures.  A comparative analysis of moisture retention (graph below) shows that SilcoTek coated surfaces retain minimal moisture while untreated stainless steel retains significant amounts of water.  Managing moisture is important because trace moisture can adsorb some reactive compounds and corrode stainless steel surfaces, affecting HPLC test reliability.



  Back to top


Coat The Entire Flow Path

Coating critical flow paths prevent contamination and corrosion of bio-sensitive surfaces.  SilcoTek coatings can be applied to glass, ceramic, quartz, stainless steel and steel alloy surfaces, protecting flow paths and preventing test errors.  Flow path components include:

  • Needles
  • Tubing
  • Ampules
  • Valves & Fittings
  • HPLC Columns
  • Separators/Fritted Filters
  • Probes


Back to top
