Dursan HPLC Applications

June 10 2022 LC & GC Chromatography

HPLC Column banner

Why would someone use Dursan® in their HPLC column and equipment flow paths?  Let's discuss the benefits of using a CVD coated flow path for solving HPLC test problems.

 Dursan HPLC Applications

In this blog post you will learn:

How Dursan® coated surfaces can improve HPLC test results

  • The limitations of materials commonly used in HPLC systems.
  • The benefits of using high purity CVD coatings for chelating agents, protein and organic molecule separations.
  • How precision coatings impact column packing efficiency.
  • Where to buy coated HPLC columns.

Background

PEEK, stainless steel, and titanium are all used in high performance liquid chromatography (HPLC) flow paths, either in sample transfer, filtration or in the column themselves.  All are good materials but they can have limitations.

  • PEEK- Very inert polymer, works for low pressure, but under high pressure the tubing can rupture.  PEEK frits can deform under high differential pressure.
  • PEEK- Has limited tube diameter options, making it an impractical for prep columns.
  • Stainless steel- Robust but reactive surface.  Stainless can adsorb reactive analytes resulting in peak distortion, lost peaks or failed tests.
  • Titanium- Bio-inert in nature, can have reactive sites, plus titanium is expensive.

Subscribe to our blog and email

Surface reactivity and material durability can hamper HPLC test performance and reliability with serious consequences.

  • Analytes can be lost
  • Peaks can be broad
  • Testing can be unreliable
  • Lost peaks
  • Equipment failures

In this blog post we'll discuss buying coated products that improve or prevent common HPLC test issues, and we'll review test data that highlight how coatings can improve HPLC test results.



Where to Buy Dursan Coated HPLC Columns

SilcoTek has partnered with MicroSolv to provide chromatographers a direct source of inert, high-quality HPLC column hardware that is optimally packed and ready to use off the shelf.  Dursan®-coated Cogent™ HPLC columns enable highly sensitive and robust liquid chromatography performance in a variety of pH conditions.  Contact MicroSolv to experience the benefits of next-generation HPLC technology that is highly reproducible and is more versatile and efficient than PEEK or titanium.

The benefits of Dursan® coated HPLC column hardware, like frits and columns include:

  1. Increased hardware robustness even under extreme salt or pH conditions.
  2. Improved hardware inertness for many biological compounds.
  3. Improved hardware chemical compatibility with THF compared to PEEK.
  4. Improved hardware chemical compatibility without metal ion leaching problems.
  5. Improved results when testing oligonucleotides.

MicroSolv HPLC, analytical, and separation products are available through their extensive distribution network which includes VWR International and Cornerstone Scientific in North America, VWR, ML Lab Friends, PM Separations, RiKi Global Trading PVT and others throughout the world.

  1. Click here to view a product listing of MicroSolv’s Cogent HPLC column offering that can be outfitted with Dursan®-coated hardware.
  2. Order Dursan-coated columns by:
    Creating an account and placing an order directly on MicroSolv’s e-commerce website.
    Submitting the customer service contact form.
    Calling:
    Voice: 1-732-380-8900
    Toll-Free: 1-888-248-4972 (U.S. only)
  3. Dursan can be applied to any metal HPLC flow path components.  Contact SilcoTek directly if you have specific coating questions or would like to evaluate a custom coating request.

Learn More About Buying  Dursan Coated MicroSolv HPLC Products



What benefit does Dursan® offer over other materials for inertness?

HPLC Medical Background

Dursan coated stainless steel flow paths and columns can dramatically improve the inertness of stainless steel while maintaining a robust system at a cost that's significantly cheaper then titanium.  Dursan® is a thin flexible CVD coating that can penetrate and line all areas of the HPLC flow path including:

  • Fritted filters
  • Needles
  • Stainless steel tubing
  • Fittings
  • Columns
  • Valves

Because Dursan is inert, the coating won't negatively impact the performance of test molecules and will improve the performance of compounds like:

Dursan used for organic molecule separation
  • Chelating agents
  • Proteins
  • Organic molecules
  • Oligonucleotides
  • Metal ion leaching and contamination prevention



Let's discuss comparative test results and learn more about the performance of CVD coated flow paths in HPLC applications.  For more information about our metal free performance coating technology get our presentation or watch our webinar.

Watch Our Metal-Free  HPLC Webinar

Chelating agents like tetracycline

  • Tetracycline is an antibiotic, commonly used for acne and skin infections
  • The molecule has numerous chelating groups that bind readily to metal sites
  • Dursan can make the steel column more inert toward metal loving molecules like tetracycline

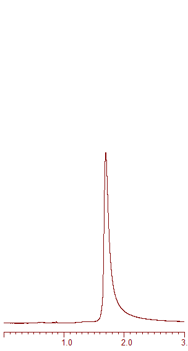

The comparative chromatograph below tells the story.  The resolution quality of tetracycline on a stainless steel column showed poor peak shape and response.  The Dursan® coated column significantly improved the peak shape and significantly improved response.

Tetracycline HPLC peak shape comparison.jpg

Dursan prevents chelating groups from binding to metal sites.  This can be a significant issue for high surface area components like sintered metal frits.  Let's compare the peak shape performance of coated and uncoated frits and columns for chelating applications.

Parameters for the test were:

  • Mobile Phase A: Water
  • Mobile Phase B: Methanol
  • 40% B
  • Flow: 0.3mL/min
  • Detection: 265nm

We injected the solution onto several coated and uncoated columns to compare peaks and overall performance.  Materials were grouped into 4 tests, A, B, C, and D outlined below.

Chelating agent comparison

The Dursan® coated surfaces improved peak resolution and peak shape significantly as compared below.

Stainless frit and column poor resolution

Group A: SS Frit & Column

dursan coated column, excellent peak resolution

B: Dursan Frit & Column

dursan coated frit improves resolution

C: Dursan Frit, SS Column

Titanium frit has poor peak resolution

D: TI Frit, SS Column





Coated frit 3

Proteins

Comparative studies with Abbott Laboratories demonstrated the non stick feature of Dursan.  Through our collaborative study with Abbott Laboratories, Dursan was shown to prevent non-specific protein binding and minimize protein fouling.  Studies highlighting separations on HPLC peptide standard mixture, ribonuclease, cytochrome C, bovine serum albumin, and proteins show better response and minimum retention of the analyte on the surface, preventing cross contamination.

QCM-D analysis of coated and uncoated stainless steel surfaces show significant increase in protein mass on the stainless steel surface.  The Dursan coated surface does not retain proteins, showing no increase in mass after washing with a non-ionic surfactant.  This demonstrates the non stick feature of the coating.



Protein-Adsorption-Graph

Want to learn more about our protein study?  Read the complete whitepaper.

Read The Protein Adhesion  Study

Organic Molecules

Organic molecules like phosphates can perform poorly in stainless steel flow paths.  We compared the performance of phosphate interaction in stainless and Dursan coated systems.  Results show a significant improvement in performance.

  • Adenosine triphosphate (ATP) provides energy to drive numerous processes in living cells
  • It is typically converted to adenosine diphosphate (ADP) or adenosine monophosphate (AMP)
  • Phosphates are well known to have severe peak tailing during HPLC analysis due to the phosphate-iron interaction

Comparison of organic molecule performance



Packing Efficiency

Does the application of Dursan® to columns and frits have an effect on packing efficiency or flow?  We compared coated and uncoated columns and found comparable packing efficiency.

Column type

Efficiency (avg of 3)

Asym (avg) of 3

Stainless Steel

15195 plates

1.028

Dursan coated frit and column

15233 plates

1.026

With Dursan coated frit, SS column

15069 plates

1.020

Titanium frit SS column

14263 plates

1.044

Comparison of plates show there are negligible effects on pressure and column packability.  Why is packability not effected by the coating?  Because the coating process results in a micron thick surface on larger geometries like columns.  And on fine geometries, like frits, the coating process results in a 100 nm thick surface.  The super thin but durable coating has a minimal impact on overall volume and efficiency.

In a previous blog post we discussed the question: Is Dursan resistant to TFA in HPLC testing applications.  Read that post here to learn more about how the coating performs.
